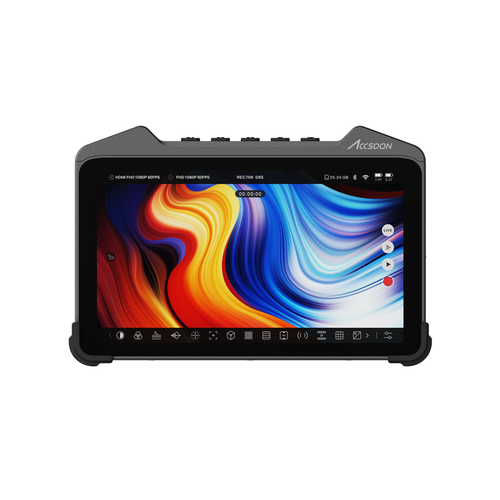

Accsoon CineView M7 PRO
£578.33 (ex VAT)
£694.00 (inc VAT)
SKU: Accsoon CineView M7 PRO ACC-MT01
Current Stock:
4K60 7" Smart Touchscreen Wireless Transmission Monitor Compatible with CineView QUAD/HE/SE/2 SDI/Master 4K The Accsoon Cineview M7 Pro features an integrated dual-band wireless receiver that can receive 1920 x 1080p video from up to 365 meters away. With the latest firmware update and a separately available receiver or the Accsoon SEE app (available in the App Store and Google Play), you can enable transmitter mode to send your video to other devices. The monitor also supports Wi-Fi and Bluetooth file transfer, cloud uploading, and live streaming to the internet. Sharp and True-to-Life This edge-lit LED-backlit LCD screen features a bright multitouch interface with 1920 x 1080 resolution, designed for accurate monitoring of cinema-quality footage. It offers a wide 176° viewing angle and is factory-calibrated to 100% Rec.709 for true-to-life colours. Professional Connections The monitor is equipped with 3G-SDI input and output supporting up to 1080p60 video. The HDMI 2.0 input and output support up to DCI 4K60 video. In addition, the monitor features a 3.5mm microphone input and a headphone jack. Recording Functionality The monitor offers built-in recording via the SD card slot or through the USB port using a flash drive or external SSD. You can record up to 4K60 via the HDMI input or 1080p60 via the SDI input, with support for H.264/H.265 compression and CBR/VBR settings. Recordings can also be saved with applied 3D LUTs. The SmartOS operating system provides a user-friendly file management interface for playback and organization of all your recordings.
Included in the package:
1D and 3D Cube LUTs Supported 1D: up to 4096 points 3D: up to 127 points 4K DCI (4096*2160): 23.98/24/25/29.97/30/50/59.94/60 4K UHD (3840*2160): 23.98/24/25/29.97/30/50/59.94/60 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080i: 50/59.94/60 720p: 50/59.94/60 1080p: 23.98/24/25/29.97/30/50/59.94/60 Level A/B 1080i: 50/59.94/60 4K DCI (4096*2160): 23.98/24/25/29.97/30/50/59.94/60 4K UHD (3840*2160): 23.98/24/25/29.97/30/50/59.94/60 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080i: 50/59.94/60 720p: 50/59.94/60 1080p: 23.98/24/25/29.97/30/50/59.94/60 Level A 1080i: 50/59.94/60 Dual-Band connection: 350 metres App connection: 100 metres
Availability: Available in 1-2 Weeks
Accsoon CineView M7 PRO Wireless Transmitter/Receiver
Display
7'' TrueVision Backlight LCD
Resolution
1920 x 1080 pixels
PPI
323
Touchscreen
Ultra High Resolution Capacitive Touchscreen
Aspect Ratio
16:9
Brightness
1000 nits
Contrast Ratio
1000:1
Viewing Angle
176 deg/ 176 deg
Backlight Type
Edge-Lit Ultra-transparent LED Backlight
Screen Colour Calibration
Supported
LUT
Video Input Port
HDMI 2.0/3G-SDI
Video Output Port
HDMI 2.0/3G-SDI
HDMI Video Input Format
SDI Video Input Format
HDMI Video Output Format
SDI Video Output Format
DC Port
6.0~16.8V 5.5mm*2.1mm Centre Positive
Compatible Battery
Compatible with NP-F550, NP-F750, NP-F970 Batteries
USB-C Power Input Port
PD3.0 9V/3A, 12V/3A , 15V/3A
USB-C Power Output Port
Maximum: 5V/2A
Microphone Jack
3.5mm TRS
Headphone Jack
3.5mm CTIA
Microphone Input Audio Sampling
16bit, 48KHz
Power Consumption
12W-28W (Varies according to actual usage)
Housing
Aircraft-grade Aluminium Alloy
Heat Dissipation
Active + Passive Cooling
Transmission Frequency
Dual-Band 2.4GHz + 5GHz
Wireless Transmission Latency
60ms
Wireless Transmission Distance
Work Environment Temperature
-10 - 40 degC
Weight
494g
Dimensions
182.2 x 120.7 x 31.5mm
