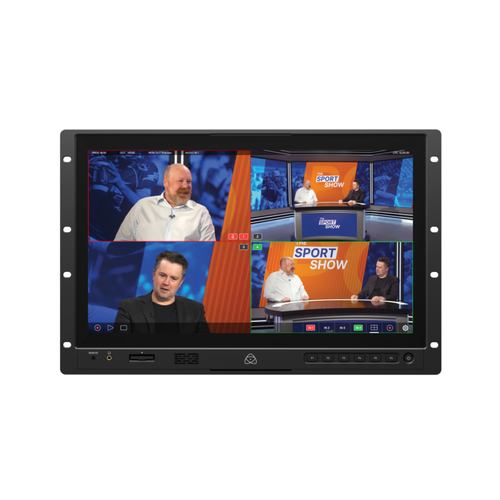

Atomos Shogun AV-19 ATOMSHGAV1

Atomos Shogun AV-19

£1,699.00 (ex VAT)
£2,038.80 (inc VAT)
SKU: Atomos Shogun AV-19 ATOMSHGAV1

Current Stock:

Availability: Normally Available in 3-5 Days
Adding to cart… The item has been added

ATOMOS SHOGUN AV-19 - 19-inch Rack Mountable 4K HDR DCI-P3 Monitor-Recorder-Switcher

19-inch 4K HDR DCI-P3 7RU rack-mount monitor-recorder-switcher designed for professional live production and broadcast. Featuring four SDI inputs, ISO recording, and live multi-camera switching, it supports NDI HX3 over Ethernet and records in ProRes, DNx, and ProRes RAW. With XLR audio connectivity and advanced monitoring tools, it provides a complete monitor-record-switch workflow for modern studio and outside broadcast environments.



What's in the box:

  • Shogun AV-19 monitor-recorder-switcher
  • 4-pin XLR power supply
  • 5 x international IEC power cables
  • Rack nuts and bolts (x10)
  • Screen cloth
  • Quick Start Guide

​

  • 19-inch 4K HDR DCI-P3 monitor in a 7RU rack-mount chassis
  • Records ProRes, ProRes RAW, and Avid DNx to CFexpress or external USB-C storage
  • ISO recording of up to four camera inputs, plus a fifth program output
  • Live multi-camera monitoring and switching
  • 2 × 12G-SDI + 2 × 3G-SDI inputs, 12G-SDI output, HDMI input/output, with XLR audio
  • Advanced technical monitoring tools, including EL Zone™ false colour, focus peaking, waveform, and more
  • NDI® HX3 transmit and receive over Ethernet
  • User-assignable function buttons
  • Log-to-LUT viewing with support for 3D LUTs and .cube files
  • Redundant backup recording for added reliability
Physical Specifications
Dimensions (W x H x D mm) 482mm x 310mm x 60mm
Weight 5.22kg
Mount Points 19-inch rack ears
Rack Height 7 RU
VESA Mount No
Environmental
Ambient operating temperature Up to 40 Degrees Celsius
Construction & Control
Body Aluminium with ABS plastic
Cooling Actively controlled fan and heat sink
Touchscreen Capacitive touch
Multi-function button Power + 6 assignable
Tally light LED on front only
Power
Input voltage DC 12V to 16.8V DC
Compatible batteries Connect to either/both DC 4-pin XLR input
Battery voltage 14.4V nominal
Battery Power Single battery input via dedicated 4-pin XLR
DC in connector 1 x 4-pin XLR for included DC power supply
D-Tap Via third-party D-Tap to 4-pin XLR cable
Display
Size 19''
Resolution 3840 x 2160 4K UHD
Bit depth 10-Bit (8+2 FRC)
Backlight Type Double edge lit
Brightness (cdm2 / Nits) 1200
Aspect ratio 16:9
Color Gamut 100% Rec.709, 99% DCI-P3, 99% NTSC, 87% BT.2020
Calibration support Calibrite Display Pro or Display Plus on PC/Mac with Atomos LANC cable (ATOMCAB018, sold separately)
Colour Pipeline
Gamma Sony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320, / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-Log / HLG, JVC J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ (HDR10), HLG, Nikon N-Log
Gamut DCI P3, DCI P3+, DCI-P3 D65, Rec709. Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec.709. Canon Cinema / Panasonic V Gamut /ARRI Alexa Wide Gamut / JVC LS300. RED DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
3D LUT  Display .Cube Format (17 & 33 points supported)
3D LUT Output Loop out
3DLUT 50/50 Yes
Monitoring Modes Native / HLG / PQ / 3D LUT
HDR output Conversion Log / HDR to HLG / PQ
Video Input
HDMI 1 x HDMI (2.0) up to 4K60P
Locking Port No
SDI 1 x 12G SDI
Wifi No
USB 2 x USB-C 2.0/3.0
Bit Depth 8/10-bit video
Video Chroma Subsampling 4:2:2
Metadata
SDI File name – ARRI & RED.RAW – white balance, exposure index, shutter speed/angle, iris/F-stop, ISO, gamma, gamut
File naming- Standard Scene/shot/take & rolling scene/shot/take
File naming- Over SDI Auto-matched filenames from supported ARRI & RED Cameras
Video Output
HDMI 1 x HDMI (2.0) up to 4K60P
Locking Port No
SDI loop out 1 x 12G SDI
HDR Yes with Auto detection
Audio In/Out
Audio Quality 24-Bit / 48kHz
Audio Codec PCM
HDMI  8-channel, 24-bit (input dependent)
SDI 12-channel, 24-bit (input dependent)
Analogue Audio in 2 x 3-pin XLR (female)
Analogue Audio Out 2 x 3-pin XLR (male)
Speakers Mono confidence up to 1.5W
Headphone out 3.5mm headphone jack, 2-channel
Network
Ethernet 1 x RJ45
Web Streaming
RTMP Yes
RTMP / S Yes
Video Signal Conversion
HDMI to SDI Yes
SDI to HDMI Yes
Timecode / Sync
SDI Embedded Embedded
HDMI Embedded Embedded
Time of day Yes
Reference / Genlock input Yes (playback mode only)
Wireless AirGlu RF Server and Client No
Wireless AirGlu BT Server No
LTC  LTC via dedicated BNC input (record mode only)
Resolution & Frame Rates Maximum (Record, Monitor & Playback)
6k RAW up to 6Kp30 via SDI
4k RAW up to 4Kp60 via SDI
2k RAW up to 2Kp240 via SDI
4k DCI up to 4Kp60
4k UHD Up to UHDp60
2K DCI 2046 x 1080 up to 2Kp60
1080p Up to 1080p120
1080 PsF Only via pulldown to progressive
1080i 1080i50 / 1080i60
720p Up to 720p60
Recording CODEC
Apple ProRes RAW ProRes RAW, ProRes RAW HQ
Apple ProRes LT, 422, 422 HQ
Avid DNxHD DNxHD 220x, 220, 145, 36
Avid DNxHR LB, SQ, HQ, HQX
H.265 LQ, MQ, HQ, XQ in 8/10-bit, 4:2:2 and 4:2:0
H.264 Not supported
Pre Roll 8s HD / 2s 4K - ProRes, DNxHD only
Timelapse Yes
ISO Recording 4 x ISO up to 1080p60 (3G SDI Level A & B)
Switch program record Yes
Playback
Playlist Yes - create customer playlists from full or sub-clips
Loop Yes, with user-customizable in/out markers
Apple ProRes RAW Yes, recorded clips
Apple ProRes HQ, 422, LT (linear PCM audio only)
Avid DNx  DNxHD: 220x, 220, 145, 36 – DNxHR HQX, HQ, SQ, LB (linear PCM audio only)
H.265 Yes
Supported media
CF Express Atomos certified CF Express Type B media
USB Atomos certified USB 3.0 media
File System exFAT
Multi-input Switching
Dual input display Via multi ISO input mode
Multiple SDI input Up to 4 x 1080p60 (3G SDI Level A & B)
Multiview display Via multi ISO input mode
Input switching Yes
On Screen Tools
Waveform 3 sizes – adjustable opacity & brightness
RGB parade 3 sizes – adjustable opacity & brightness
Vector scope 2 sizes – adjustable opacity & brightness
1 x Zoom Yes. 1:1 pixel mapping for 4K
2 x Zoom Yes
Focus peaking Colour selected / threshold setting / colour / mono / edges only
Zebra Yes adjustable
EL ZONE SYSTEM Colourized Exposure Yes
ARRI False colour Yes
Atomos False colour Yes with scale
Isolate colour channel Blue only
Cine Frame Guides Presets for 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3
Social Frame guides Presets for 9:16, 1:1, 191:1, 4:5
Onion Skin Yes
Safe areas SMPTE frame size – Action and Safe
Grid markers 9 grid
Anamorphic Desqueeze 1.25x, 1.33x, 1.5x, 1.6x, 1.65x, 1.79x, 1.8x, 2x
Display Flip Vertical
Onboard Signal Processing
4K UHD downscale for HD  Loop out - 4K UHD to FHD
DCI Crop Loop out - 17:9 to 16:9 crop
Pulldown removal 24 / 25 / 30 pSF > 24 / 25 / 30p (2:2 pulldown), 60i > 24p (3:2 pulldown)
Remote control
HDMI Auto HDMI trigger, supported protocols - Canon, Sony, Atomos
SDI SDI trigger camera selectable
Serial 2.5mm jack Calibration via optional USB to serial cable
Camera to Cloud
ATOMOSphere Direct progressive upload supported (20GB free storage) over Ethernet
Adobe Frame.io Direct progressive upload supported (separate purchase) over Ethernet
Dropbox Direct progressive upload supported (separate purchase) over Ethernet
Accessories
AC to DC Power Adaptor Yes, sold separately (ATOMPWR024)
Sun Hood No
Standard 1 Year
Atomos Care360 Enhanced  2 Year
Warranty
1 year. Extended to 2 years on product registration (excludes screen).
