Manfrotto 504X Fluid Video Head with CF Twin Leg Tripod MS
Current Stock:

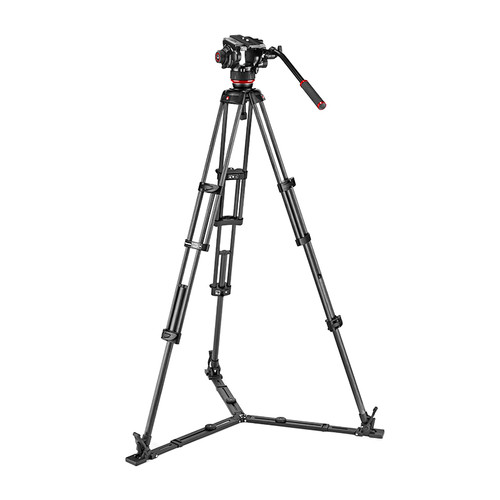

This video system includes the Manfrotto 504X Fluid Video Head and the MVTTWINMC carbon fibre twin leg with middle spreader tripod. Features: Specifications:
The Manfrotto 504X fluid video head with flat base features the new Manfrotto fluid technology which allows smoother operation and unrivalled stability in both pan and tilt movements. It presents a 4-step counterbalance system that can take loads of up to 6.5 kg at 55 mm C.O.G.
The head is made from a brand-new catching aluminium design and has a maximum payload of 12 kg.
It is a compact and light head with a flat base (base diameter 75 mm), that lets you choose from a wide variety of different shooting options. It also features two 3/8” Easy Link connectors, equipped with an anti-rotation function that enables the fitting of external monitors or other accessories. A cap fits over the easy link, to avoid cutting during use. The sliding plate attachment and side-lock mechanism allows safe, quick and easy camera attachment.
The head attaches to the tripod via a dedicated 75mm half ball.
The MVTTWINMC carbon fibre twin leg with middle spreader video tripod is a professional-quality tripod with a two-stage, extremely rigid and stable design making it ideal for all kinds of assignments. If you want to create professional level video or films, then this is the must-have tripod. It features an aluminium casting 100mm bowl and it comes with an aluminium adapter that converts the bowl into a 75mm.
The tripod has a mid-level spreader with telescopic arms, that helps you to set leg angles accurately. It is also detachable , allowing you to use the tripod in combination with the ground spreader Manfrotto 165MV, which is sold separately.
Leg locks are secure and reliable and twin spiked feet with rubber overshoes are provided for solid grounding.
For maximum versatility, the tripod can be used with various dollies (114MV and 181B).
With its combination of robust construction and compatibility options, this tripod definitely has it all.
Supplied with its own padded carrying bag.
Weight
5.3 kg
Safety Payload UNI/PdR 105:2021
12 kg
Counterbalance System
Variable Steps
Counterbalance Weight
2.2, 4.4, 6.5 kg
Maximum Height
169 cm
Min Height
75 cm
Base Diameter
75 mm
Bubble Spirit Level (No.)
1
Centre of gravity
55 mm
Carrying Bag Included
yes
Centre Column
no centre column
Closed Length
86 cm
Colour
Black
Top Attachment
1/4″ screw, 3/8″ screw
Ball Flat
Flat
Powered by (batteries)
Lithium
Easy Link
Yes (with anti-rotation)
Front Tilt
-70° / +90°
Head Type
Video/Fluid Head
Leg Type
Twin
Leg Lock Type
Flip Lock
Leg Sections
3
Material
Carbon Fibre
Maximum Working Temperature
60 °C
Minimum Working Temperature
-30 °C
Pan Bar Included
yes
Pan Drag
continuously adjustable from 0 to max level
Panoramic Rotation
360 °
Plate Type
504PLONGR-1
Quick Release
yes
Spreader
mid level - variable arm length
Tilt Drag
continuously adjustable from 0 to max level
Accessory Compatibility
114MV; 181B; 165MV; MVAPANBARM; MVAPANBARL
