Panasonic AV-HS60C4E Control Panel
£16,292.70 (ex VAT)
£19,551.24 (inc VAT)
SKU: AV-HS60C4E
Current Stock:

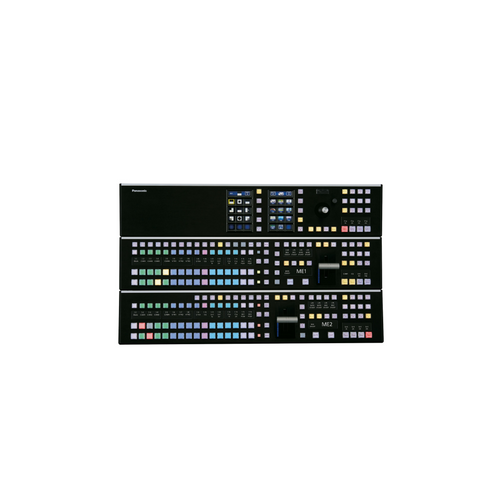

The AV‑HS6000 is a 2ME model in the HS series that employs a newly designed, easy-to-use GUI Control Panel to support accurate switching. Even with its 3U compact size, the main unit is equipped with an abundance of inputs and outputs for great system integration that include 32 SDI and 2 DVI inputs plus 16 SDI outputs. To top it all off, 4 DVEs per ME enable diverse transitions when producing creative video in demanding fast paced situations. Three types of control panels can be used. C1 and C2 panels offer 24 XPT buttons and 4 pages, and allow easy switching among 96 total cross-points. Single or redundant power supply is selectable. The compact panel C4 is 30% shorter than the C1/C2 version and offers an easier integration into small studios and OB Vans. It offers 26 XPT buttons and 4 pages, for switching among 64 total cross-points. In all cases, two multi-selection panels easily allow to recall wipes, event, shot, video and still memories
Availability: Available in 1-2 weeks
Panasonic AV-HS60C4E Control Panel
Model No.
AV-HS60C2P/E, AV-HS60C4P/E
Power Supply
AC 100 V to 240 V, 50 Hz/60 Hz (supports redundant power supply)
Power Consumption
40W
Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity
10 % to 90 % (no condensation)
Storage Temperature
0 °C to 40 °C (32 °F to 104 °F)
Storage Humidity
10 % to 90 % (no condensation)
Weight
AV-HS60C2P/E: Approx. 13.9 kg (30.6 lbs.) (excluding accessories)
AV-HS60C4P/E: Approx. 15.0 kg (33.0 lbs.) (excluding accessories)
Dimensions
AV-HS60C2P/E:
W 980 mm x H 153.4 mm x D 267 mm
(38-19/32 inches x 6-1/32 inches x 10-1/2 inches) (excluding protrusions)
AV-HS60C4P/E:
656 mm×160 mm×400 mm
(25‑53/64 inches×6‑19/64 inches×15‑3/4 inches) (excluding protrusions)
Mainframe Terminal
Compatible with 100Base-TX and AUTO-MDIX (For Mainframe AV-HS60U2 connection)
Connection cable (supplied with AV-HS60C2): LAN cable (CAT5e),
Straight cable, STP (Shielded Twisted Pair), 10 m (32.8 ft)
• Connector: RJ-45
When connected to the terminal, no video will be displayed on the Menu Panel AV-S60C3G.
MENU Panel terminal
Used only for the Menu Panel AV-HS60C3G
• Connector: DVI-D
• Cannot be connected to DVI-D monitor.
• Cannot be used concurrently with a DVI-D monitor connected to the terminal. Select
with the display selector switch.
DVI-D Terminal
Used for displaying menus to the DVI monitor
• Connector: DVI-D
• Monitor resolution: 1366 x 768 compatible monitor
• Cannot be used concurrently with the <MENU PANEL> terminal. Select with the display
selector switch.
USB Terminal
For DVI monitor menu operation
• Connector: USB (type A, female)
• Cannot be used for the Menu Panel AV-HS60C3G.
Display Selector Switch
Switch for selecting <MENU PANEL> terminal or <DVI-D> terminal
COM1 (M) Terminal
RS-422 Control Terminal
For master connection for controlling external devices
• Connector: D-sub 9-pin (female), inch screw
COM2 (RS-232) Terminal
RS-232 Control Terminal
For external device control connections
• Connector: D-sub 9-pin (male), inch screw
GPI I/O Terminal
GPI IN: 8 inputs, general-purpose, photocoupler sensing
ALARM OUT: 1 output, open collector output (negative logic)
GPI OUT: 10 outputs, selected from general purpose, tally
Open collector output
• Connector: D-sub 25-pin (female), inch screw
ME Number
2 ME
