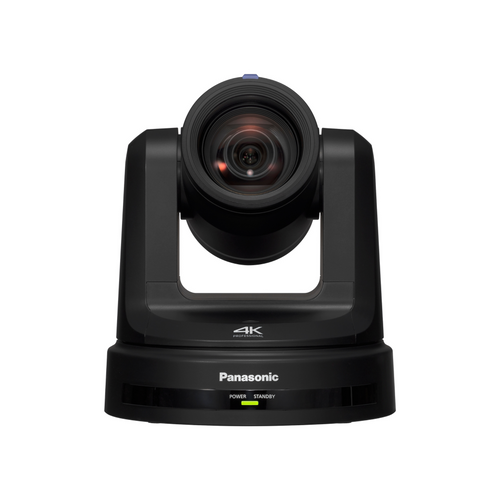

Panasonic AW-UE40 4K PTZ Camera
Current Stock:
The AW-UE40 features a built-in Auto-Tracking. This built-in version is an entry-level, AI-based smart function that tracks one person with a single camera - without additional hardware or software. This technology uses body recognition to keep someone on camera. It is an easy way for corporations, higher education facilities, etc. to provide remote or hybrid meetings with little setup. PTZ cameras enhance visual communication in a variety of applications ranging from online classes to online seminars. The AW-UE40 supports a compact design to blend in with the surroundings and operates very quietly to permit flexible use in any video shooting locations or conditions. The AW-UE40 offers high security and it is easy to install and operate for capturing stable images, so even people unfamiliar with video shooting or camera operation can utilize it. The excellent flexibility of the product simplifies wiring and operation. Linkage with online conference software or online application is possible, so online video streaming is easy to initiate. The AW-UE50/UE40 is a standard model perfect for people who want to utilize online video streaming more frequently or enhance the quality of online video streaming. Single-cable solution Direct drive system Online Video Content support Upgraded 4K sensor Wide-Angle Lens Optical Zoom and Image Stabilisation New Processor 4K & HD Analogue Outputs New NDI|HX, SRT & IP Outputs The AW-UE40 also supports the high-efficiency, low bandwidth NDI|HX*2 version 2, which is available via an optional paid-for upgrade. This enables video transmission at low bitrates over a single LAN cable. RTMP/RTMPS*3 provides direct streaming to live broadcasting services such as YouTube Live and Facebook Live from the camera directly. New Web Interface & Simplified Workflows Panasonic offers an entire ecosystem of solutions to enable the new PTZ cameras to be smoothly introduced into existing camera systems. This includes use with its remote camera controllers, PTZ Control Center centralised control software, and its automatic tracking software for presentations and lectures, enabled by face recognition and human body detection. USB2.0 DEVICE, Type C connector, no USB bus-powered function. Only compatible with UVC (USB Video Class Motorized Optical 24x zoom, F1.8 to F4.0 Conversion Lens not supported If you have a PoE++ ethernet hub Panasonic AW-UE40 4K PTZ Camera
The AW-UE40 also offers PoE+ support for camera power, control and video transmission over a single cable.
The AW-UE40 features the direct drive system based on Panasonic’s own technology for quiet and smooth vertical and horizontal direction, with a reduced operating sound of NC25 or lower. Direct drive also opens up more opportunities for PTZ operation including faster, precise movement and with higher accuracy in preset positioning – making it Panasonic’s fastest, quietest and most accurate PTZ yet.
When using the PTZ Virtual USB driver software and using a LAN connection, it is possible to obtain video and audio from the UE40 in the same way you would an USB camera. The AW-UE40 is also equipped with Privacy Mode, which positions the lens towards the back when on standby.
The AW-UE40 features a new 1/2.5-type 4K MOS sensor that produces stunning UHD video with true 4K resolution of 1,500 TV lines in UHD. The UE40 supports both HDMI and IP which makes it an ideal option for using within existing HD or 4K workflows thanks to its simultaneous video output feature.
The AW-UE40 introduces a new wide-angle lens with a 74.1° field of view and a 24x optical zoom, enabling a wide area to be shot from a limited installation space, in addition to maintaining high image quality at high zoom ratios. This allows shooting in large indoor spaces. Intelligent zoom extends its capabilities to 28x in UHD and 36x in Full-HD.
Optical Image Stabilisation (OIS) has been added to the unit to ensure smooth pan-tilt movement when in busier environments or moving or be placed onto a robotic system for example.
The AW-UE40 includes a new powerful chipset platform, making the PTZ incredibly responsive and capable of increased video processing tasks for higher image quality and lower latency.
The AW-UE40 supports up to 4K 25p/30p video at 3840 x 2160 to provide professional and high-quality shooting of moving images, as well as a variety of output interfaces such as HDMI, and IP – which can be activated simultaneously for HD and 4K workflows. USB* is also supported.
There is also a wide variety of IP transmission protocols available. Out of the box, Secure Reliable Transport (SRT*1) is supported to maintain stability while transmitting high-quality video, even in unstable network environments. SRT allows video distribution over public internet in a secure and reliable way, as it offers encryption and as lost packets are automatically detected and resent.
A brand new web interface has been introduced for professional operators working within darker environments to easily navigate the advanced GUI for operators.
Power Requirements
12 V DC (10.8 V to 13.2 V) (Supplied AC adaptor)
PoE++
IEEE802.3bt standard: DC 42 V to 57 V (Camera Input) (Software authentication (LLDP) is supported).
Current Consumption
1.8A (XLR IN connector), 1.0A (PoE++ power supply)
Ambient Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
Ambient Operating Humidity
20 % to 90 % (no condensation)
Storage Temperature
–20 °C to 50 °C (–4 °F to 122 °F)
Weight
Approx. 1.8 kg (3.97 lbs) (excluding ceiling mounting bracket)
Approx. 2.05 kg (4.52 lbs) (including ceiling mounting bracket)
Dimensions
W 160.0 mm x H 192.1 mm x D 166.0 mm
(6.299 inches x 7.563 inches x 6.535 inches)
(Excluding protrusions, cable cover, ceiling mounting bracket)
Controller Supported
AW-RP150GJ,AW-RP60GJ,AW-RM50G/AW-RM50AG
Imaging Sensors
1/2.3-type 4K MOS x 1
Effective Pixels
Approx. 8,490,000 pixels
Zoom
Optical zoom: 24x
• i.Zoom: UHD 28x, FHD 36x
• Digital zoom: 1.4x, 2x
Lens
[f=4.12 mm (5/32 inches) to 98.9 mm (3‑29/32 inches);
35 mm (1‑3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23‑5/8 inches)
Angle of View Range
Horizontal angle of view: 74.1° (wide) to 3.3° (tele)
Vertical angle of view: 46.0° (wide) to 1.9° (tele)
Diagonal angle of view: 81.8° (wide) to 3.8° (tele)
ND Filter
Through、1/4, 1/16, 1/64 (Through is used as "night
mode")
Focus
Switching between auto and manual
Focus Distance
Entire zooming range: 1200 mm, Wide end: 100 mm
Colour Separation Optical Systems
1MOS
Standard Sensitivity
F4, 2000 lx (When normal mode is selected)
F5.6, 2000 lx (When High Sens mode is selected)
Minimum Illumination
3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation)
Horizontal Resolution 4k
-1500 TV Typ (Center Area, UHD Mode, wide)
Horizontal Resolution HD
-1000 TV Typ (Center Area, UHD Mode, wide)
Gain Selection
Auto, 0 dB to 36 dB (1 dB step increments)
Super Gain: +37 dB to 42 dB
Frame Mix
Auto, 0dB, 6dB, 12dB, 18dB, 24dB
Electronic Shutter Speed
(59.94p/59.94i) 1/60 to 1/10000
(50p/50i) 1/60 to 1/10000
(29.97p) 1/30 to 1/10000
(25p) 1/25 to 1/10000
(23.98p/24p) 1/24 to 1/10000
Synchro Scan
(59.94p/59.94i) 60.00 Hz to 7200 Hz
(50p/50i) 50.00 Hz to 7200 Hz
(29.97p) 30.00 Hz to 7200 Hz
(25p) 25.00 Hz to 7200 Hz
(23.98p/24p) 24.00 Hz to 7200 Hz
Gamma
HD / Normal/ Cinema1 / Cinema2 / Still Like
White Balance
ATW: 3200K, 5600K (3-speed variable)
AWB: AWB-A / AWB-B
VAR: 2000K to 15000K
Chroma Amount Variability
OFF, -99% to 99%
Scene File
Full Auto, Scene1, Scene2, Scene3
Output Format (HDMI) 4K
2160/29.97p (Native), 2160/25p (Native), 2160/24p (Just), 2160/23.98p (Native)
Output Format (HDMI) HD
1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native),
23.98p (over59.94p), 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p
Image Stabilization
Internal/External synchronization (BBS/Tri-level sync)
Input Connector (DC IN)
DC IN: DC 12 V IN
HDMI
HDMI 2.0 connector, 4:2:2/10 bit (HDCP and Viera Link not supported)
3G SDI OUT
SMPTE292M/424M/ 75 Ω(BNC×1)
• Level-A/Level-B supported
LAN
LAN terminal for IP control (RJ-45) 100BASE-TX/1000BASE-T
RS-422
CONTROL IN RS422A (RJ-45)
USB
USB2.0 DEVICE, Type C connector, no USB bus-powered function.
Only compatible with UVC (USB Video Class)
* UVC 1.0, UAC 1.0
MIC/LINE Input
AAC compatibility (compatible with IP only)
Φ3.5 mm stereo mini jack
• During MIC input
Input level: -40 dBV (0 dB=1 V/Pa, 1 kHz)
Supply voltage: 2.5 V±0.5 V (plug-in power compatible)
• Input impedance: Approx. 2 kΩ (when plug-in power is turned ON)
Approx. 20 kΩ (when plug-in power is turned OFF)
• During LINE input
Input level: -10 dBV
Input impedance: Approx. 3 kΩ
• Input volume variable range: -36 dB to 12 dB (3 dB step)
• Embedded audio output level: -12 dBFS
• Sampling frequency: 48 kHz
IP Connecting Cable
LAN cable (category 5e or above, straight cable) Max 100 m (328 ft)
• If you don't have a PoE++ ethernet hub
LAN cable (category 5e or above, straight cable) Max 100 m (328 ft)
AW Protocol Connecting Cable
LAN cable max. 1000 m (3280 ft)
Installation Method
Stand-alone (Desktop) or suspended (Hanging)
Pan/Tilt Operation Speed
Speed range:0.08 °/s ~60°/s(manual operation) *3 speed modes installed ~60°/s,Fast1:~90°/s,Fast2:~180°/s
Panning Range
±175°
Tilting Range
-30 to 90
Quietness
NC25 or less
Windows
Windows 10
Microsoft Edge
Google Chrome
Mac
macOS 10.13 / Safari 13
macOS 10.14 / Safari 13
macOS 10.15 / Safari 13
macOS 10.15 / Google Chrome
iPhone / iPad / iPod touch
iOS, Safari, iPadOS
Android
Android OS
Google Chrome
Image Streaming Mode
JPEG(MJPEG), H.264, H.265, NDI/HX Ver2, High Bandwidth NDI
Image Resolution
1920x1080, 1280x720, 640x360, 320x180
JPEG Frame Rate
Maximum 30 fps
JPEG Image Quality Fine / Normal
Image Transmission Setting (H.264)
Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Transmission Mode: Constant bit rate, Frame rate, Best effort
Frame Rate:
[60Hz] 5fps / 15fps / 30fps / 60fps (UHD: 30fps, 60fps)
[50Hz] 5fps / 12.5fps / 25fps / 50fps (UHD: 25fps, 50fps)
Max Bit Rate
512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps /
6144kbps / 8192kbps /
10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps
Image Transmission Setting (H.265)
Unicast port (AUTO), Unicast port (MANUAL), Multicast port
Frame Rate
[60Hz] 30fps/60fps
[50Hz] 25fps/50fps
Max Bit Rate
1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps /
10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps
Audio Compression Type
AAC-LC, 48kHz/16bit/2ch
Supported Protocol
IPv6
TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTP, MLD, ICMP, ARP, RTMP, SRT
IPv4
TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP,
RTMP, RTMPS, SRT
NDI Support
NDI® HX : Available to upgrade
NDI High bandwidth (HD)
1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 720/59.94p,
720/50p
Image Resolution (NDI HX)
1920x1080, 1280x720
Transmission Type (NDI HX)
TCP/UDP, Unicast/Multicast
Audio Compression Type (NDI HX)
AAC-LC, 48 kHz, 16 bit, 2 ch
Tally LED Display colour
Red/Green
